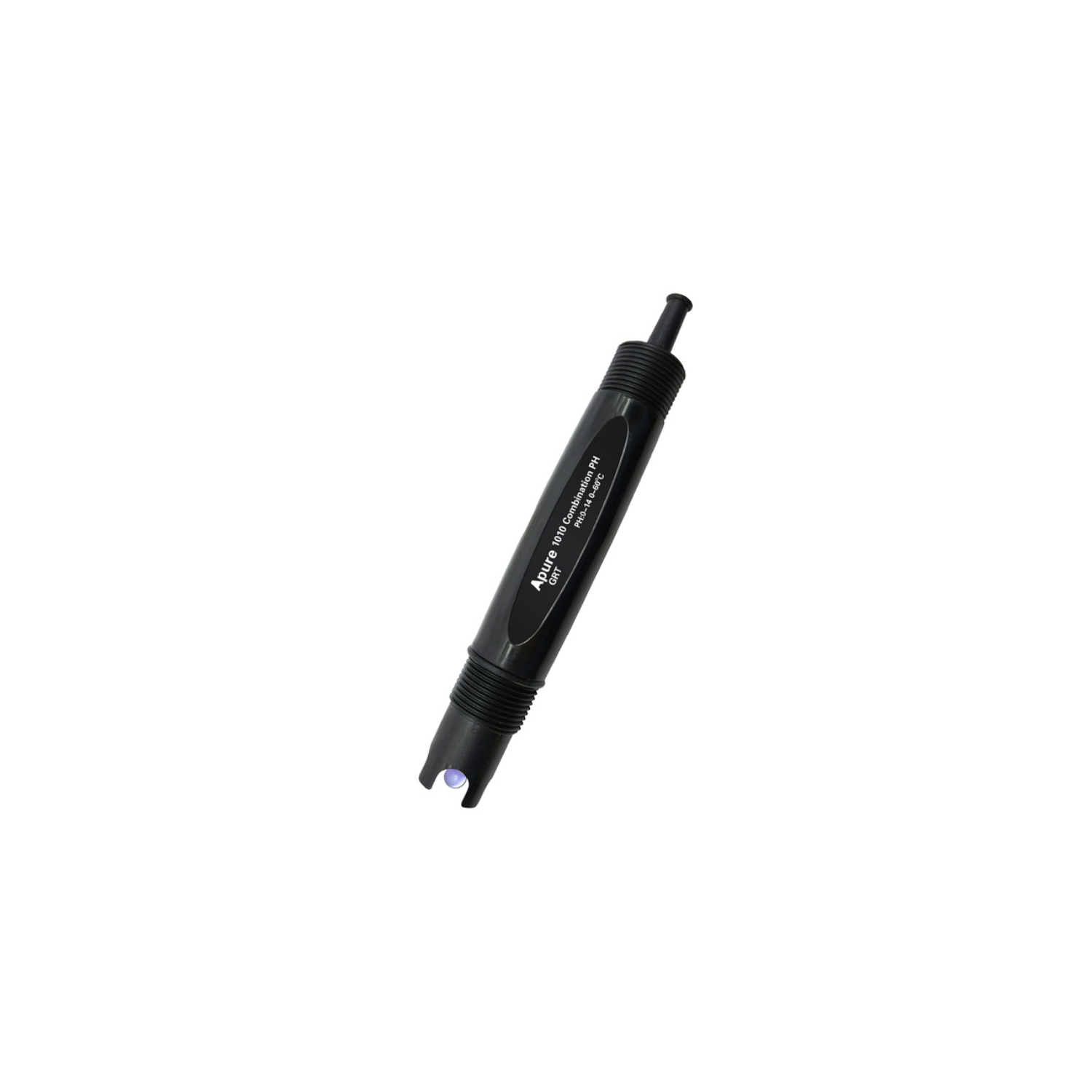

PH-ORP Probe Sensor (ORP7500)

Ph Probe Sensor with 10m Cable (ORP7500)

Industrial PH sensor
Industrial PH sensor is a combination electrode adopts annular Teflon liquid junction, gel electrolyte and special glass sensitive membrane. Fast response and high Stability. Industrial high temperature ph sensor compatible with 4-20ma. PH sensors are also know as Ph probes or ph electrodes.

Ph Probe Performance Features
Adopt solid electrolyte, 0.4MPa pressure.
Easy to use without adding electrolyte.
Solid electrolyte salt bridge can prevent electrode poisoning effectively, such as S²ˉ,CNˉ.
Adopt antifouling annular Teflon liquid junction, hard to clog, long-term online detection.
Adopt different sensitive membrane electrode for PH measurement under various conditions. Low inner resistance electrode, fast response and high stability.
Adopt standard Pg13.5 screw thread, suitable for piping installations

pH Sensor Specifications
Liquid: Acid and alkaline solution
Measurement Range: 2-12 pH
Material Construction: PC+ABS
Thread Dimension: Bottom NPT 3/4″ Taper thread, MiddleNPSC1 1/4″ Taper thread, Upper NPT 3/4″ Taper thread
Temperature: 0-50’C
Pressure: 6bar Max (25’C)
Cable Length: 10m Standard
Storage Conditions: 0-45’C, Humidity 85%, Condensation (None)
